Design innovations to improve water quality treatment performance of filter media mixtures involve the incorporation of additives to enhance retention of reactive or dissolved pollutants. A number of granular amendments have been demonstrated to improve nutrient removal from discharge water in BMPs such as bioretention systems, stormwater planters, absorbent landscapes, sand filters or green roofs.

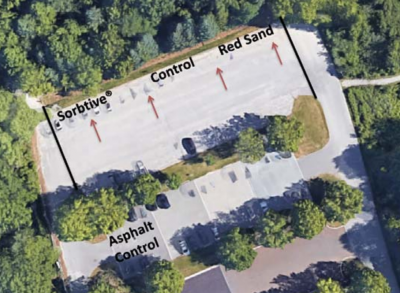

There are two primary processes involved, chemical precipitation and adsorption. Both mechanisms are ultimately finite, but have been shown in some cases to make significant improvements on the discharged water quality over several years. For instance, a two year STEP research study that compared standard bioretention media, to the same media amended with Sorbtive™ in one plot and iron enriched sand (aka red sand) in another showed statistically significant improvements in effluent phosphorus concentrations from the two media amended plots (STEP, 2019)[1].

Determining when additive enhanced filter media needs replacing or maintenance represents a new challenge for stormwater asset managers, as there are no suitable visual indicators. Erickson et al. (2018) suggest effluent sampling and laboratory testing to identify when enhanced filter media pollutant retention is waning, or periodic sampling and batch (laboratory) testing of filter media to directly measure its capacity to retain the targeted pollutants[2]. Periodic replacement of filter media at inlet locations should be considered as an operation and maintenance best practice to maintain treatment performance.

In our effort to make this guide as functional as possible, we have decided to include proprietary systems and links to manufacturers websites.
Inclusion of such links does not constitute endorsement by the Sustainable Technologies Evaluation Program.
Lists are ordered alphabetically; link updates are welcomed using the form below.

Filter Media Additives
Material Benefits Potential concerns
Biochar Renewable
Enhances soil aggregation, water holding capacity and organic carbon content
Currently expensive
Energy intensive to produce
Some sources say ineffective for phosphorus removal
Bold & GoldTM Documented total phosphorus removal of up to 71%[3] Proprietary
Iron filings or Zero valent iron (ZVI) Proven phosphorus retention
Retained phosphorus is stable
May harm plants[4]
Removal efficiency declines with increased concentration of incoming phosphorus
Red sand or Iron-enriched sand Proven phosphorus removal
Also removes TSS
Poor orthophosphate removal in hypoxic or anoxic conditions
Smart SpongeTM Removes phosphorus, as well as TSS, fecal coliform bacteria and heavy metals
1-3 year lifespan, after which the product is removed as solid waste
Sorbtive MediaTM High phosphorus removal efficiency Proprietary
Water treatment residuals Waste product reuse Quality control (capabilities depend on source, treatment methods, storage time)
