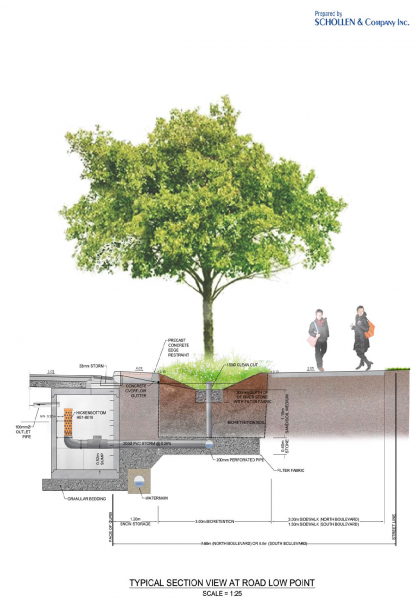

This cross-section of a road from the Markham Municipal Green Road Pilot Project shows how water from a primary inlet flows through a catchbasin sump with a hickenbottom-style riser, which promotes sedimentation before the water reaches the infiltration gallery.

Box like underground concrete structure with openings in curb and gutter designed to collect runoff from streets and pavement.

Deposition of material of varying size, both mineral and organic away from its site of origin by the action of water, wind, gravity or ice.

Settling-out or deposition of particulate matter suspended in runoff.
